DERALE FAN COOLED OIL COOLER 7" 6TUBE

Priced from:

$120.83 - $199.55
Product #: 10854G Brand: Derale
5 stars 4 out of 5 stars 1 review(s)

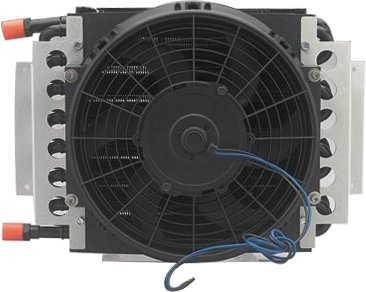

10" Fan-cooled Engine Oil Cooler, 16-tubes

SKU #: JCW-476768 Mfr #: 15800
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 10 x 12.38 x 1.75 in.
  • Inlet Attachment Style: Male threads
  • Inlet Size: -8 AN
  • Outlet Attachment Style: Male threads
  • Outlet Size: -8 AN
  • Overall Dimensions: 11.5 x 15.75 x 5 in.
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 10 x 12.38 x 1.75 in.
  • Inlet Attachment Style: Male threads
  • Inlet Size: -8 AN
  • Outlet Attachment Style: Male threads
  • Outlet Size: -8 AN
  • Overall Dimensions: 11.5 x 15.75 x 5 in.
$199.55

Sold individually

Ships: 1-2 business days

Add to Cart

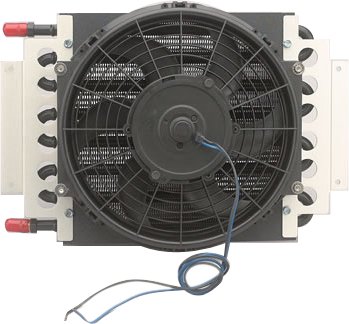

10" Fan-cooled Transmission Oil Cooler, 8-tubes

SKU #: JCW-476765 Mfr #: 13720
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 10 x 12.38 x 0.75 in.
  • Inlet Attachment Style: Male threads
  • Inlet Size: -6 AN
  • Outlet Attachment Style: Male threads
  • Outlet Size: -6 AN
  • Overall Dimensions: 10 x 16 x 3.88 in.
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 10 x 12.38 x 0.75 in.
  • Inlet Attachment Style: Male threads
  • Inlet Size: -6 AN
  • Outlet Attachment Style: Male threads
  • Outlet Size: -6 AN
  • Overall Dimensions: 10 x 16 x 3.88 in.
$157.78

Sold individually

Ships: 1-2 business days

Add to Cart

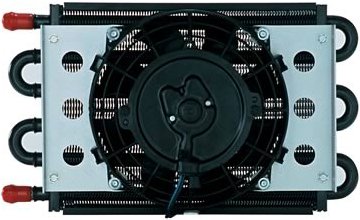

7" Fan-cooled Engine Oil Cooler, 6-tubes

SKU #: JCW-476764 Mfr #: 15830
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 7.5 x 9.75 x 2 in.
  • Inlet Attachment Style: Hose barb
  • Inlet Size: 0.5 in.
  • Outlet Attachment Style: Hose barb
  • Outlet Size: 0.5 in.
  • Overall Dimensions: 7.5 x 12 x 3.88 in.
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 7.5 x 9.75 x 2 in.
  • Inlet Attachment Style: Hose barb
  • Inlet Size: 0.5 in.
  • Outlet Attachment Style: Hose barb
  • Outlet Size: 0.5 in.
  • Overall Dimensions: 7.5 x 12 x 3.88 in.
$136.25

Sold individually

Ships: 1-2 business days

Add to Cart

7" Fan-cooled Transmission Oil Cooler, 6-tubes

SKU #: JCW-476763 Mfr #: 13730
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 6 x 10 x 2 in.
  • Inlet Attachment Style: Hose barb
  • Inlet Size: 0.34 in.
  • Outlet Attachment Style: Hose barb
  • Outlet Size: 0.34 in.
  • Overall Dimensions: 7.5 x 12 x 3.88 in.
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 6 x 10 x 2 in.
  • Inlet Attachment Style: Hose barb
  • Inlet Size: 0.34 in.
  • Outlet Attachment Style: Hose barb
  • Outlet Size: 0.34 in.
  • Overall Dimensions: 7.5 x 12 x 3.88 in.
$120.83

Sold individually

Ships: 1-2 business days

Add to Cart

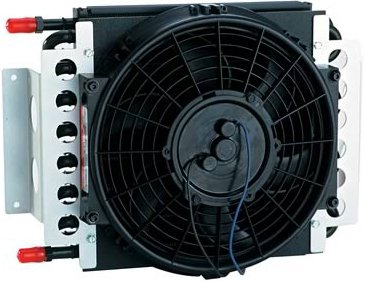

10" Fan-cooled Transmission Oil Cooler, 16-tubes

SKU #: JCW-476767 Mfr #: 13700
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 10 x 12.38 x 1.75 in.
  • Inlet Attachment Style: Male threads
  • Inlet Size: -6 AN
  • Outlet Attachment Style: Male threads
  • Outlet Size: -6 AN
  • Overall Dimensions: 10 x 12.5 x 4 in.
  • Cooler Construction: Tube and fin
  • Cooler Material: Copper/aluminum
  • Core Dimensions: 10 x 12.38 x 1.75 in.
  • Inlet Attachment Style: Male threads
  • Inlet Size: -6 AN
  • Outlet Attachment Style: Male threads
  • Outlet Size: -6 AN
  • Overall Dimensions: 10 x 12.5 x 4 in.
$144.04

Sold individually

Ships: 1-2 business days

Add to Cart

10" Fan-cooled Engine Oil Cooler, 8-tubes

SKU #: JCW-476766 Mfr #: 15820
$192.45

Sold individually

Ships: 1-2 business days

Add to Cart
Features
FAN-COOLED ENGINE AND TRANSMISSION OIL COOLERS
  • Maximize cooling in stop and go traffic...extend engine or transmission life
  • Compact, self contained design
  • Copper and aluminum construction for maximum heat dissipation
  • Reversible push or pull operation
Coolers feature 1/2"ID copper tubing and aluminum cooling fins. Billet-style aluminum brackets allow mounting in almost any position. Cooler ends have AN (Aircraft National) threads, except where specified. Screw-on adapters are included, except where specified, to convert threaded hose connection to barbed push on type. Amp draw: 5.3. Black powder coated. For automatic operation, order thermostat switch (ZX476786 for transmission coolers; ZX476787 for engine coolers). Mounting hardware and hoses not included. NOTE: For vehicles with Cummins diesel engine, order ZX476768 for both engine and transmission.
