When a 2010 Skoda Yeti rolled into the shop with a transmission that refused to respond, the flashing gear indicator on the dash and a constantly blowing 30-amp fuse in the under-hood fuse box pointed to a serious issue. This wasn’t just any transmission problem—it involved a dry clutch DSG (Direct-Shift Gearbox), a system used across the Volkswagen Group, including Volkswagen, Audi, SEAT, and Skoda.

As a seasoned automotive technician, DiagnoseDan saw an opportunity to take a deep dive into the internals of this complex transmission, explain how it works, and find out exactly what was causing the electrical short.

Step One: Confirming the Issue

Before diving into repairs, confirming the problem is crucial. Starting the Yeti and running through the gears—reverse, neutral, drive—revealed that the car wasn’t moving at all. With the symptoms lined up, it was time to inspect the suspect 30-amp fuse connected to the transmission control module.

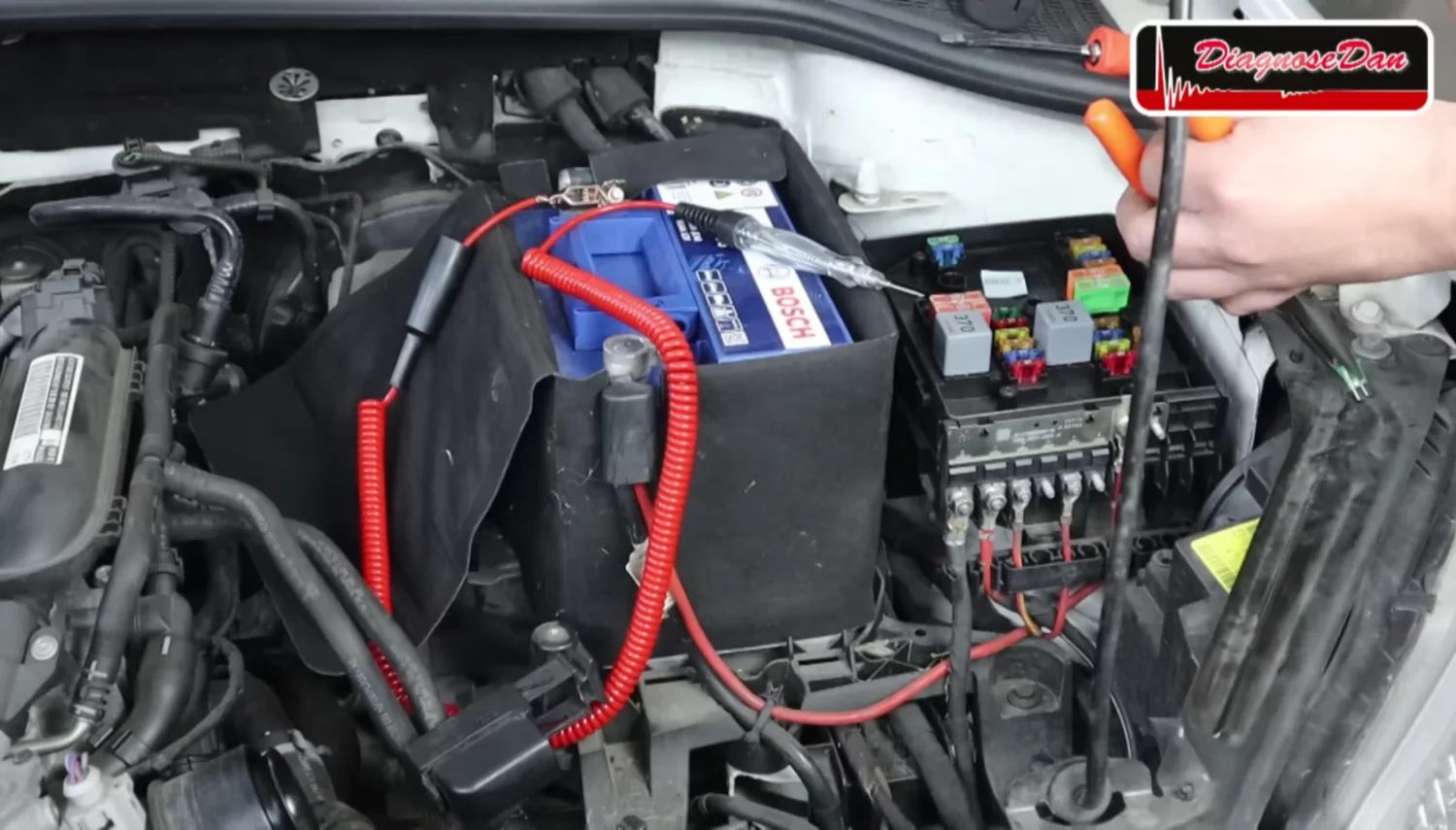

Sure enough, the fuse was blown. The next step? Replacing the fuse to see if it would blow again—which it did, confirming the presence of an active short to ground.

Step Two: Narrowing Down the Fault

To isolate the issue, the transmission connector was removed. With the connector off, the fuse no longer blew—meaning the short was inside the transmission itself. From here, the only option was to remove the mechatronic unit, the brains behind the DSG’s seamless shifts. This unit, responsible for engaging clutches and changing gears, would need to be placed on the workbench for further inspection.

But before that, a quick detour—battery testing.

Step Three: The Overlooked Importance of Battery Testing

Before diving deeper into the transmission, DiagnoseDan shared a critical shop philosophy: always test the battery. Statistics from European roadside assistance services reveal that over 50% of vehicle breakdowns are battery or charging system-related. Testing the battery before completing any major repairs prevents embarrassing call-backs from customers stranded due to a simple oversight.

Using a Medtronic CPX 900 battery tester, which measures both cold cranking amps (CCA) and reserve capacity, it was clear that the vehicle’s battery had failed the test and needed replacement. Testing the new battery before installation ensured the problem wouldn’t resurface after the transmission repair.

Step Four: Understanding the DSG Transmission

The DSG transmission, despite being an automatic, is fundamentally two manual gearboxes combined into one housing. It consists of:

  • Two clutches – one for even gears, one for odd gears.
  • Two input shafts – allowing for pre-selection of the next gear.
  • Shift forks and hydraulic actuators – controlling gear changes via mechatronic commands.

When driving, the DSG pre-selects the next gear, meaning gear changes happen in milliseconds—offering a smooth, uninterrupted ride.

Inside the mechatronic unit are critical components like:

  • The electric motor and hydraulic pump, which provide the shifting force.
  • A hydraulic accumulator, ensuring constant pressure.
  • Several solenoids controlling clutch engagement and gear selection.

After carefully removing the mechatronics, the next challenge was to investigate the electrical short.

Step Five: Finding the Culprit

Upon disassembling the mechatronics, the issue became clear: the control unit’s circuit board was completely burned. The smell of burnt plastic was unmistakable, and even the housing itself had scorch marks.

To identify potential causes, the solenoids and electric motor were tested. The solenoids all measured within acceptable resistance ranges, and the electric motor, despite signs of minor heat damage, still functioned when spun manually, generating voltage like a generator—proving it was still good.

But why did the circuit board fail in the first place? The answer lay in a hidden technical service bulletin (TSB).

Step Six: The TSB Revelation

A Volkswagen-issued TSB revealed that older versions of DSG gearbox oil contained excess sulfur, which could corrode internal wiring and cause electrical shorts. The recommended fix? Replacing the synthetic oil with an upgraded mineral-based oil containing non-corrosive additives.

Since the car’s service history was unknown, it was likely that the previous owner had never updated the gearbox oil—leading to the eventual failure of the mechatronics control board.

Step Seven: The Fix and Lessons Learned

Given the extensive damage, a remanufactured mechatronic unit was the best solution. The new unit, provided by HR Transmissions, came pre-filled with the correct, non-corrosive oil and updated software tailored to the Skoda’s VIN. Before installation, the gearbox shift forks were set to neutral, and the mechatronics pistons were adjusted to precisely 25mm to align with the shift forks.

Once installed, the basic mechatronic calibration procedure was performed, ensuring the unit could relearn its operation and sync with the car’s ECU.

The final test? Starting the car and shifting into gear. Success! The Skoda moved smoothly through all gears, with no issues.

Key Takeaways

This case highlighted several important lessons:

  1. Always check for technical service bulletins (TSBs). They can save hours of troubleshooting and point you in the right direction.
  2. Don’t overlook the battery. A faulty battery can lead to misdiagnosed electrical issues.
  3. Be thorough in diagnostics. Testing components like solenoids and motors separately helps rule out unnecessary replacements.
  4. Regular oil changes with the correct fluid are critical. Skipping fluid updates can lead to expensive failures.

Final Thoughts

This DSG repair showcases the importance of a methodical approach to automotive diagnosis. Whether you’re dealing with electrical shorts, blown fuses, or failing mechatronic units, taking the time to break down the system step-by-step can prevent costly misdiagnoses and unnecessary parts replacements.
