If you’re exploring ways to boost engine performance, you’ve likely encountered two main options: superchargers and turbochargers. Both aim to force more air into the engine’s combustion process, resulting in greater power output. However, they achieve this goal in fundamentally different ways. Here’s a comprehensive look at how they work, their types, and the pros and cons of each.

How Superchargers Work

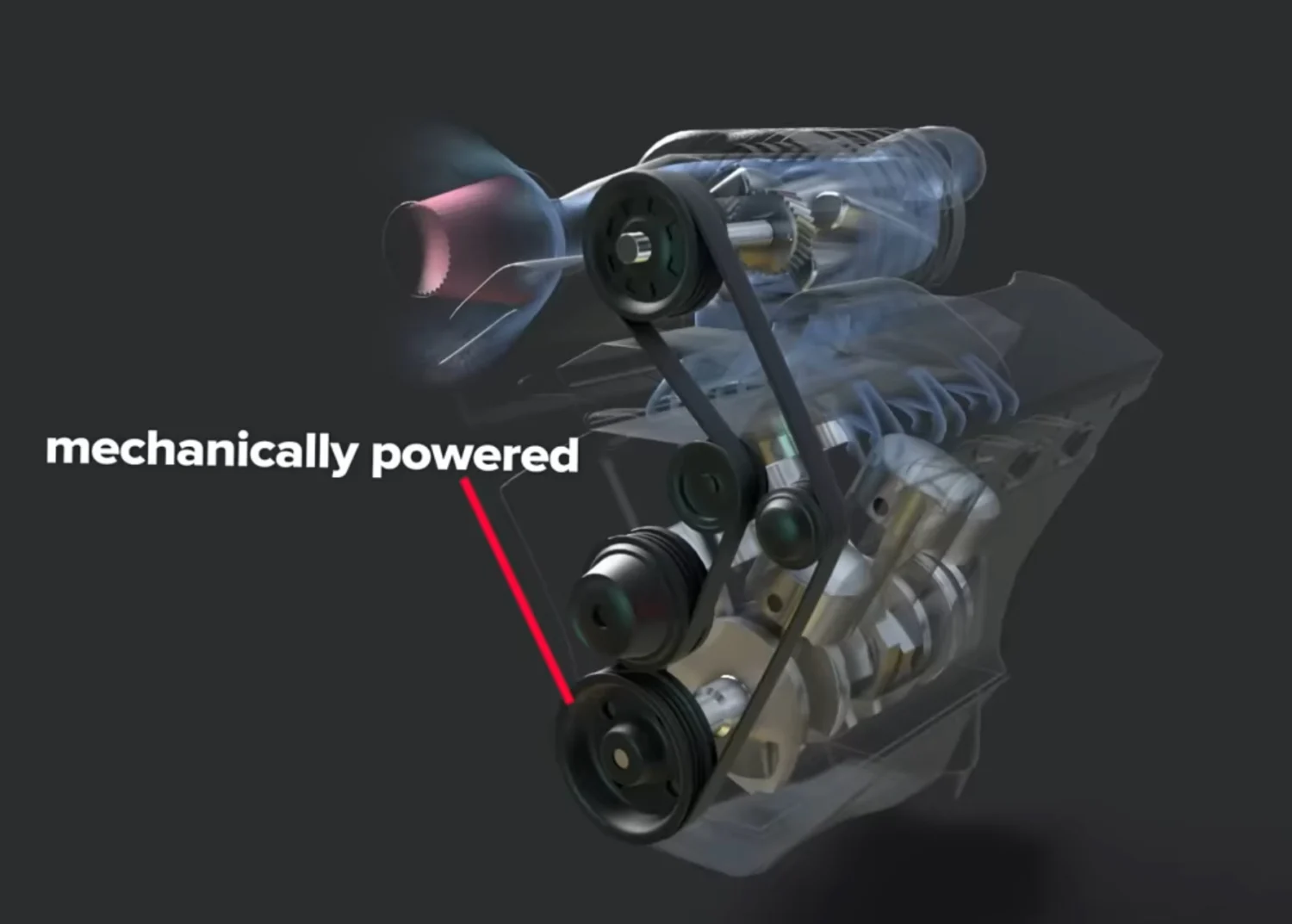

A supercharger is mechanically driven, usually connected to the engine’s crankshaft via a serpentine belt. This mechanical energy powers the supercharger, which forces air into the engine.

Here’s the step-by-step process:

Power Transfer: The engine’s crankshaft drives the supercharger pulley.
Air Intake: Outside air enters through the air filter and intake pipe.
Compression: Rotors or lobes inside the supercharger compress the air.
Discharge: The compressed air exits through a discharge port, ready to mix with fuel for combustion.

Types of Superchargers

Roots-Type
The oldest design, Roots superchargers act as air blowers rather than true compressors. They provide immediate boost at all RPMs but are less efficient compared to other designs.

Twin-Screw
Featuring intricately shaped rotors, twin-screw superchargers compress air inside the unit, offering better efficiency and performance. However, they are more expensive to manufacture.

Centrifugal
Similar in design to turbochargers but mechanically driven, centrifugal superchargers produce power in an exponential curve, making them most effective at higher RPMs.

How Turbochargers Work

Turbochargers utilize otherwise wasted exhaust energy to spin a turbine and compress air. This design makes them highly efficient.

Here’s the process:

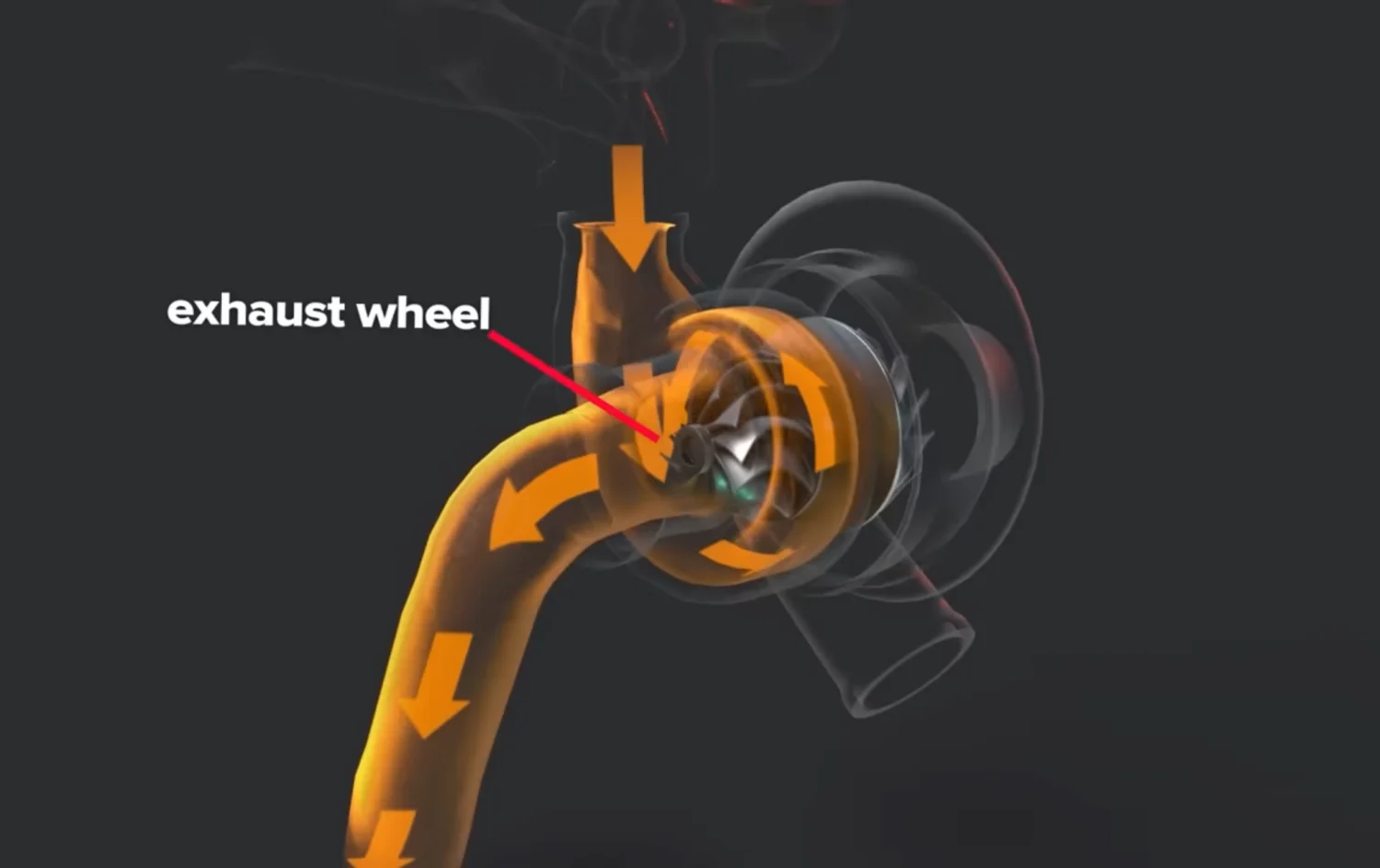

Exhaust Flow: Hot exhaust gases pass through the turbine section, spinning an exhaust wheel.
Air Compression: The spinning exhaust wheel is connected via a shaft to a compressor wheel, which draws in and compresses air.
Cooling: Compressed air is routed through an intercooler to reduce its temperature, increasing air density and efficiency.

Types of Turbochargers

Single Turbo
A single turbocharger handles all the exhaust flow, providing a straightforward solution.

Twin Turbo
This setup uses two turbochargers, often with one per cylinder bank in V-configured engines, to handle increased exhaust flow more efficiently.

Twin-Scroll Turbo
By separating exhaust pulses into pairs, twin-scroll turbos optimize turbine efficiency and minimize interference, providing smoother power delivery.

Key Comparisons: Superchargers vs. Turbos

Boost Characteristics

  • Superchargers: Provide immediate boost, even at low RPMs, with a linear power curve. Roots and twin-screw designs are particularly consistent across the RPM range.
  • Turbos: Deliver an exponential power curve, but take time to build boost due to “turbo lag.” This lag occurs as the turbine needs to reach high speeds to generate usable pressure.

Efficiency

  • Superchargers: Require engine power to operate, consuming an average of 40-60 horsepower. However, their impact on fuel economy depends on driving conditions.
  • Turbos: Use exhaust heat as a power source, making them more efficient. While they can increase back pressure, their reliance on waste energy generally results in better fuel economy.

Conclusions

The choice between a supercharger and a turbocharger depends on your priorities and application:

  • Superchargers: These are simpler and often less expensive, making them ideal for setups requiring consistent boost across all RPMs. They are easier to tune and maintain, making them a good choice for predictable performance.
  • Turbos: Though more complex and requiring additional components like intercoolers and custom exhaust systems, turbos can provide greater efficiency and higher boost levels when properly tuned. They are better suited for applications prioritizing peak performance.

Learn More

This article barely scratches the surface of the intricate world of forced induction. For more, check out Animagraffs on YouTube.

Jake creates 3D animated explainer videos that are as entertaining as they are informative. Dive into more technical insights at animagraffs.com.
