How to Address a P1780 Fault Code in a Toyota 4Runner

Instrument cluster issues can be frustrating, especially when accompanied by the dreaded P1780 fault code indicating a Park/Neutral switch problem. If you’re experiencing dim or flickering indicator lights on your Toyota 4Runner, this guide will walk you through the diagnostic process, the root cause, and a practical solution.

Understanding the Issue

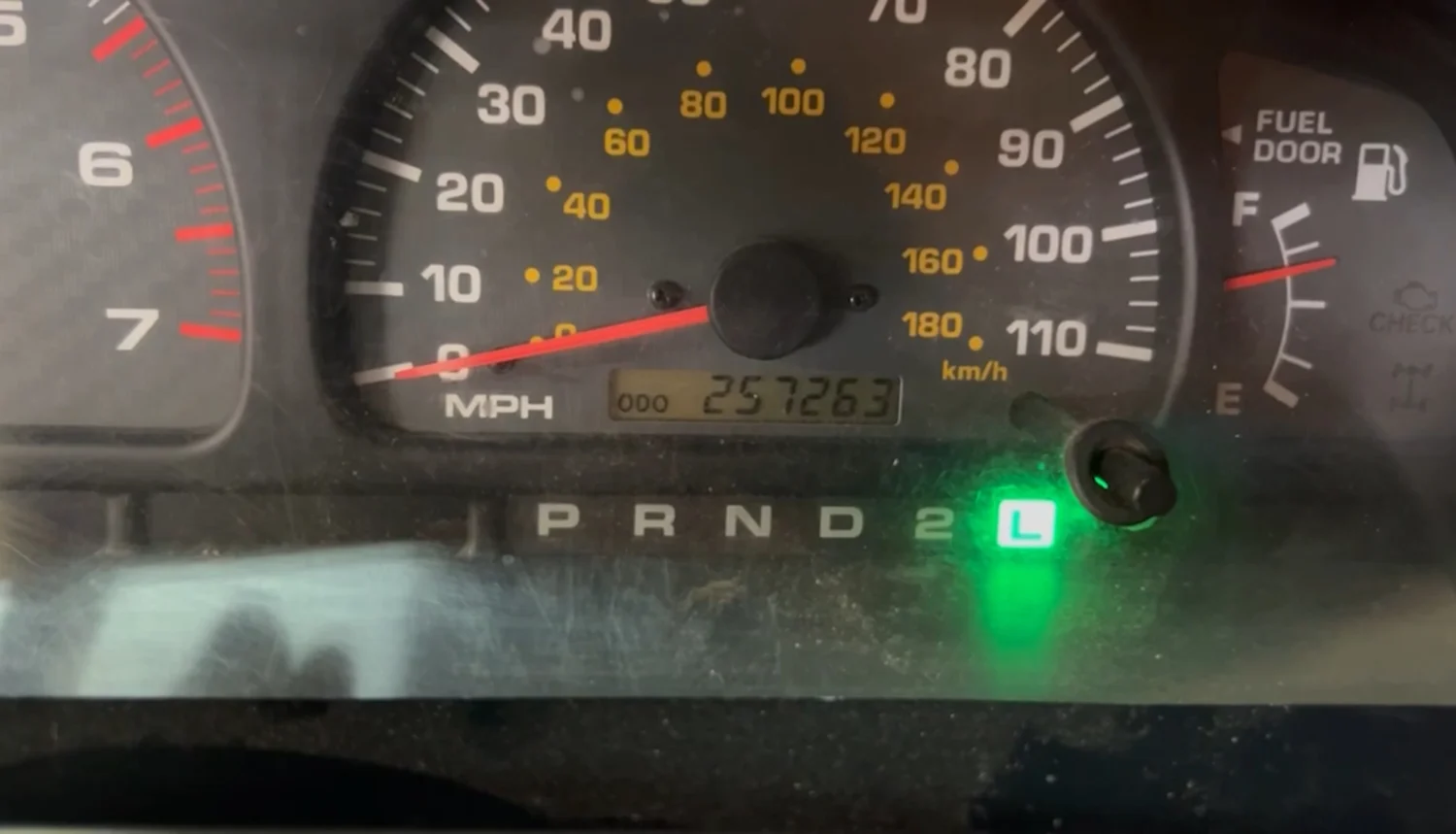

The problem with this 4Runner started with irregular behavior in the instrument cluster. The Park/Neutral indicator lights (Prindle lights) would behave erratically, with the reverse light dimly lit no matter the gear. Occasionally, a bump in the road would temporarily fix the issue, lighting everything brightly again.

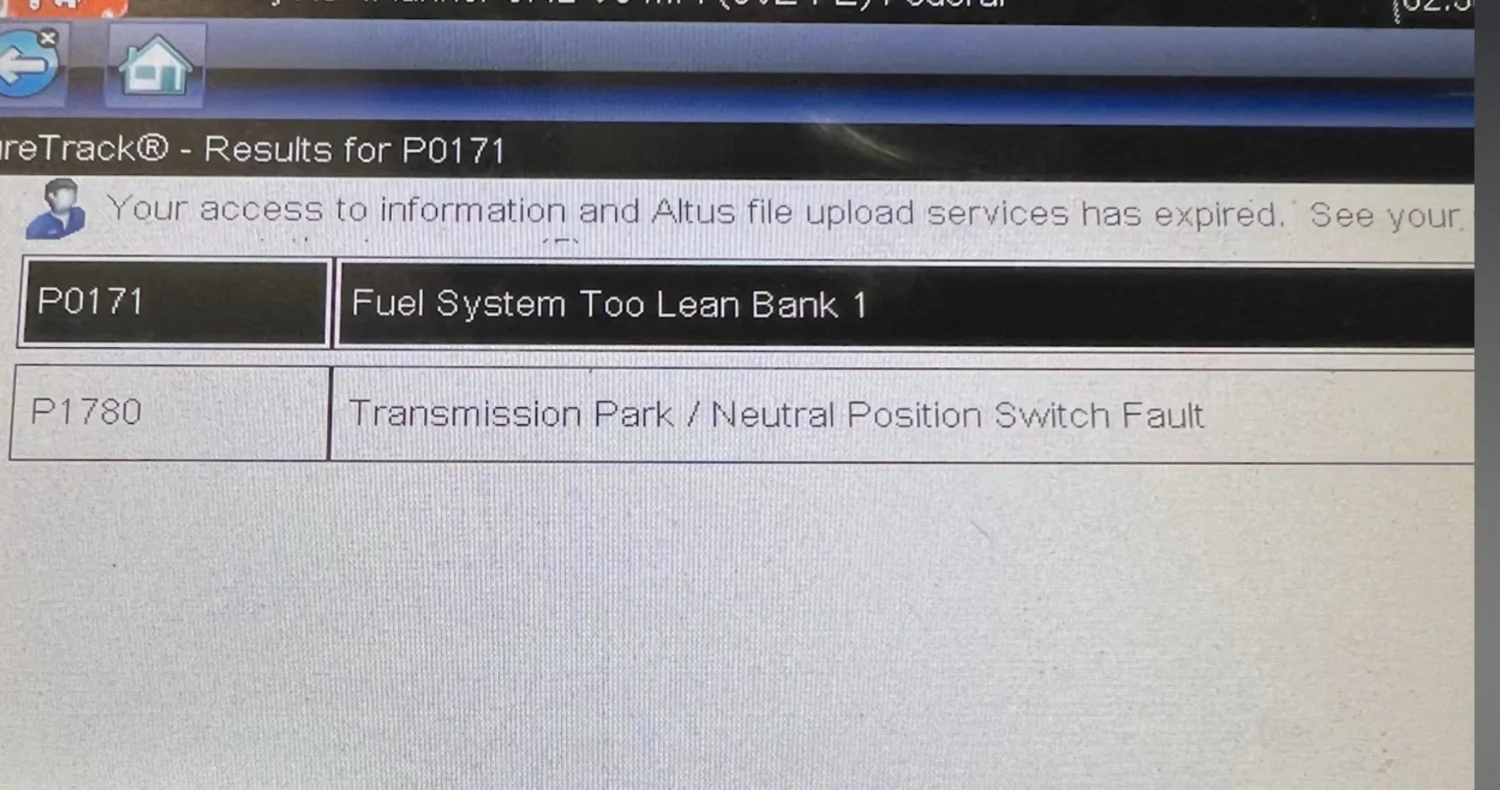

The P1780 code points to a fault with the transmission Park/Neutral position switch. However, this specific issue was traced to a faulty ground connection within the instrument cluster.

Step-by-Step Diagnosis

1. Initial Testing
   Using a multimeter, the ground circuit of the cluster bulbs was tested. By flexing the circuit board, voltage readings fluctuated from zero to five volts, indicating an inconsistent ground.
2. Locating the Fault

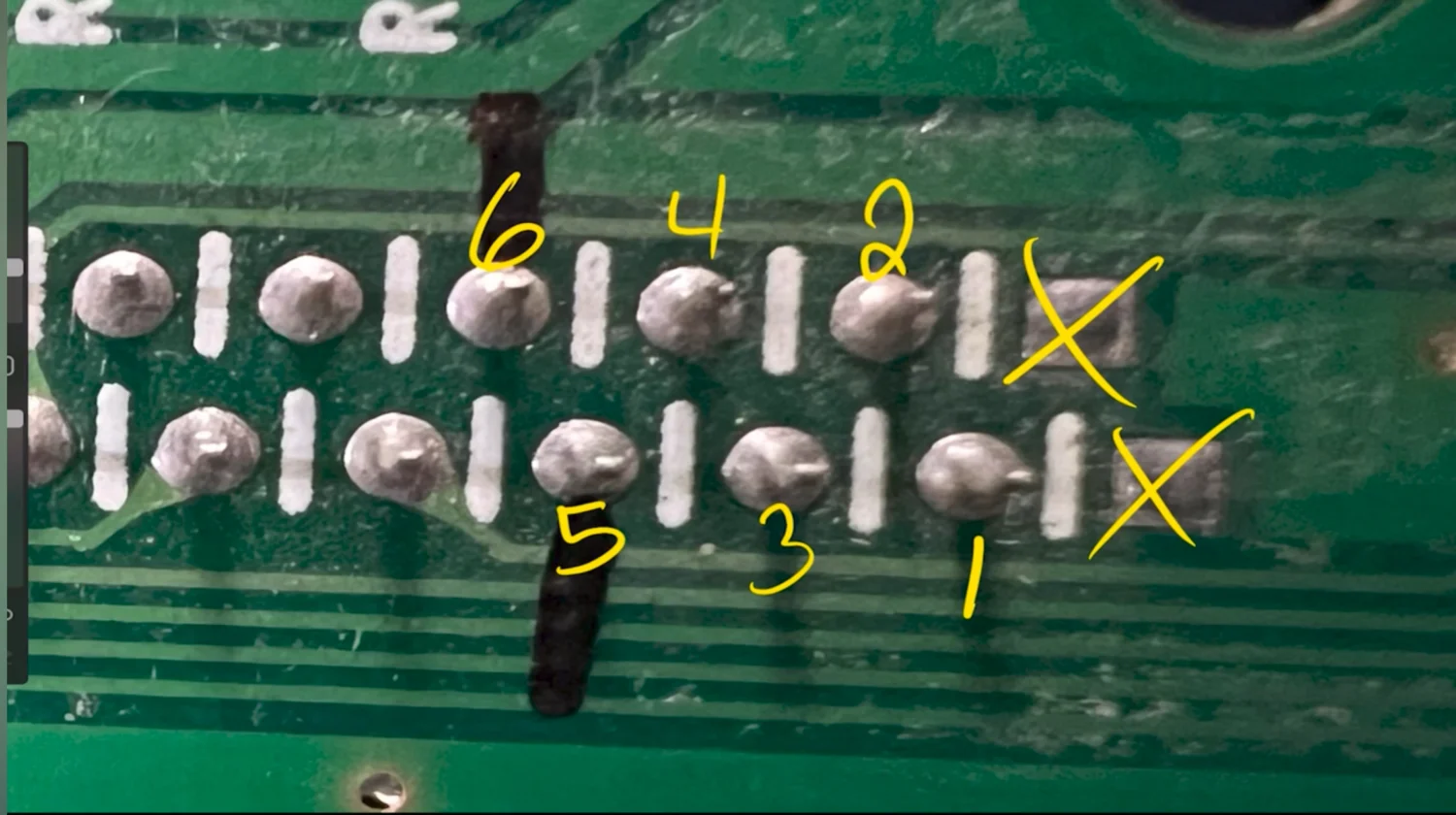

   A closer examination revealed that all the bulbs, except the Drive indicator, shared a common ground. Flexing the circuit board during testing displayed an uneven pattern on an oscilloscope, further confirming a bad connection.
3. Removing the Circuit Board
   The instrument cluster’s primary board is a flexible circuit board, similar to a ribbon cable. After disassembling the cluster, a crack was found in the circuit board near a solder joint, explaining the inconsistent electrical contact.

Repairing the Faulty Circuit Board

1. Identifying Connection Points

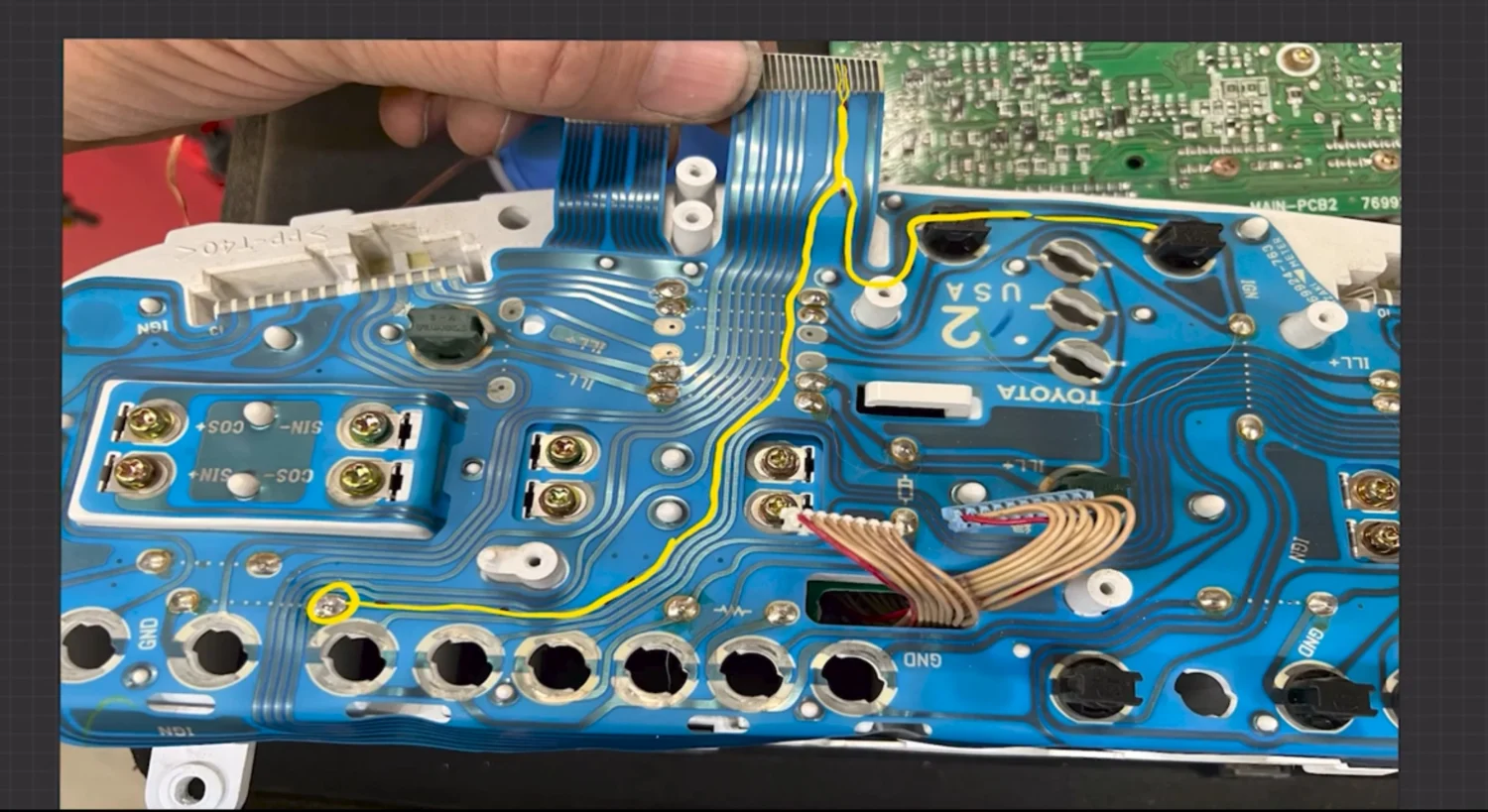

   Tracing the circuit revealed where the faulty ground connected to other parts of the board. Using a flashlight to illuminate the traces, the damaged area was located.
2. Creating a New Connection
   Instead of attempting to repair the fragile flexible circuit board directly, a new wire was soldered to bypass the broken section. The wire was connected to a solid solder point on the circuit board, ensuring a reliable ground connection.
3. Reassembly and Testing
   After securing the wire and reassembling the cluster, the indicators were tested. All lights now illuminated brightly and consistently, with the expected dimming of the Drive indicator when headlights were activated.

Key Insights

• Flexible Circuit Board Challenges
  Flexible boards are prone to cracking and are difficult to repair without causing further damage. A bypass wire is often a safer and more durable solution.
• Drive Indicator Behavior
  The Drive indicator’s dimming when headlights are on is a deliberate design feature. A resistor limits its brightness to prevent nighttime glare.
• Testing Before Completion
  Always test the repair before final reassembly to ensure the issue is resolved.

Final Steps

With the repair completed and the instrument cluster functioning correctly, the last step is to clear the P1780 fault code using an OBD-II scanner. This ensures the vehicle’s ECM recognizes the resolved issue.

Conclusion

Repairing the instrument cluster in a 2000 Toyota 4Runner requires patience and attention to detail. By identifying and bypassing the faulty ground connection, you can restore the functionality of your vehicle’s indicators and resolve the P1780 fault code.

For a full walkthrough of this repair, and more helpful tips, check out the complete video tutorial on The Practical Mechanic’s YouTube channel here.
